Compak® 35, 19, 8, 6 ROPE
As wire rope flattening the surface of outer wires of each strand, it has higher breaking load than round rope having same diameter. With the surface of strand and rope being flattened to have wider contact area between sheave and rope, it results in an intense resistance against abrasion and an extension of rope life. It is widely used in diversified applications such as crane, mining, fishing.
Compak 35 x 7
Applications:
Crane / Mining
Features:
» Greatest resistance to rotation
» Superior bending fatigue life
» Excellent resistance to crushing & abrasion
» Excellent breaking strength
» Extended life of winch drum and sheave
Diameter | Weight | Minimum Breaking Strength | |||||
inch | mm | lb/ft | kg/m | 1960(Tons) | 1960(kN) | 2160(Tons) | 2160(kN) |
10 | 0.33 | 0.50 | 87.6 | 98.3 | |||
11 | 0.40 | 0.60 | 105 | 118 | |||
7/16 | 0.41 | 0.61 | 12.1 | 13.4 | |||
12 | 0.48 | 0.72 | 124 | 140 | |||
1/2 | 0.54 | 0.80 | 15.4 | 17.4 | |||
13 | 0.56 | 0.84 | 144 | 162 | |||
14 | 0.65 | 0.97 | 168 | 188 | |||
9/16 | 0.68 | 1.01 | 19.7 | 22 | |||
5/8 | 0.84 | 1.25 | 25.2 | 28.2 | |||
16 | 0.85 | 1.27 | 224 | 251 | |||
18 | 1.08 | 1.61 | 274 | 308 | |||
19 | 1.21 | 1.79 | 307 | 344 | |||
3/4 | 1.21 | 1.80 | 34.5 | 38.7 | |||
20 | 1.34 | 1.99 | 341 | 382 | |||
22 | 1.62 | 2.40 | 415 | 466 | |||
7/8 | 1.65 | 2.46 | 47.2 | 53 | |||
24 | 1.92 | 2.86 | 491 | 555 | |||
1 | 2.15 | 3.21 | 62.4 | 70 | |||
26 | 2.26 | 3.36 | 588 | 660 | |||
28 | 2.62 | 3.90 | 676 | 758 | |||
1 1/8 | 2.73 | 4.06 | 77.5 | 86.9 | |||
1 1/4 | 3.37 | 5.01 | 98.1 | 110 | |||
32 | 3.42 | 5.09 | 873 | 980 | |||
1 3/8 | 4.07 | 6.06 | 117 | 124 | |||
36 | 4.33 | 6.44 | 1110 | 1232 | |||
1 1/2 | 4.85 | 7.21 | 138 | 147 | |||
40 | 5.34 | 7.95 | 1390 | 1521 | |||
1 5/8 | 5.69 | 8.47 | 167 | 182 |
Note: 1. To convert to kilonewtons (kN), multiply tons by 8.896. 2. To convert to pound (Lbs), multiply tons by 2000.
Compak 19
Compak 19x19
19x19(S) | 17x19(S) | 18x19(S) | 18x26(WS) | 19x26(WS)
Applications:
» Crane / Mining
Features:
» Superior bending fatigue life when compared with conventional multistrand ropes
» Excellent resistance to crushing and abrasion resulting from the overall compactness
Diameter | Weight | Minimum Breaking Strength | |||||
inch | mm | lb/ft | kg/m | EIP(Tons) | 1960(kN) | EEIP(Tons) | 2160(kN) |
3/8 | 0.31 | 0.46 | 7.55 | 8.3 | |||
10 | 0.34 | 0.51 | 84.3 | 93.3 | |||
11 | 0.41 | 0.62 | 105 | 116 | |||
7/16 | 0.42 | 0.63 | 10.2 | 11.2 | |||
12 | 0.49 | 0.73 | 121 | 133 | |||
1⁄2 | 0.55 | 0.82 | 13.3 | 14.6 | |||
13 | 0.58 | 0.86 | 147 | 162 | |||
14 | 0.67 | 1.00 | 160 | 180 | |||
9/16 | 0.70 | 1.04 | 16.8 | 18.5 | |||
5⁄8 | 0.86 | 1.28 | 20.6 | 22.7 | |||
16 | 0.88 | 1.30 | 215 | 241 | |||
18 | 1.11 | 1.65 | 266 | 299 | |||
19 | 1.23 | 1.84 | 300 | 337 | |||
3⁄4 | 1.24 | 1.85 | 29.4 | 32.4 | |||
20 | 1.37 | 2.04 | 335 | 376 | |||
22 | 1.66 | 2.46 | 405 | 454 | |||
7⁄8 | 1.69 | 2.51 | 39.8 | 43.8 | |||
24 | 1.97 | 2.93 | 482 | 540 | |||
1 | 2.21 | 3.28 | 51.7 | 56.9 | |||
26 | 2.31 | 3.44 | 572 | 637 | |||
28 | 2.68 | 3.99 | 662 | 743 | |||
1-1⁄8 | 2.79 | 4.16 | 65.0 | 71.5 | |||
1-1⁄4 | 3.45 | 5.13 | 79.9 | 87.9 | |||
32 | 3.50 | 5.21 | 859 | 964 | |||
1-3⁄8 | 4.17 | 6.21 | 96.0 | 106 | |||
36 | 4.43 | 6.60 | 1085 | 1218 | |||
1-1⁄2 | 4.97 | 7.39 | 114 | 125 | |||
40 | 5.47 | 8.14 | 1340 | 1503 | |||
1-5⁄8 | 5.83 | 8.67 | 132 | 145 | |||
Note - 1. To convert to kilonewtons (kN), multiply tons by 8.896. 2. To convert to pound (Lbs), multiply tons by 2000. | |||||||
Compak 19x7
18x7 | 19x7
Applications:
» Crane / Mining
Features:
» Good resistance to rotation
» Reduced internal torsional stresses
» Higher strength
» Improved flexibility
Diameter | Weight | Minimum Breaking Strength | |||||
inch | mm | lb/ft | kg/m | EIP(Tons) | 1960(kN) | EEIP(Tons) | 2160(kN) |
6 | 0.12 | 0.18 | 30.7 | 34 | |||
1/4 | 0.14 | 0.20 | 3.74 | 4.11 | |||
7 | 0.17 | 0.25 | 39.8 | 44.1 | |||
5/16 | 0.21 | 0.32 | 5.8 | 6.38 | |||
8 | 0.22 | 0.32 | 54.2 | 60 | |||
9 | 0.27 | 0.41 | 67.6 | 74.8 | |||
3/8 | 0.31 | 0.46 | 7.55 | 8.3 | |||
10 | 0.34 | 0.50 | 84.3 | 93.3 | |||
11 | 0.41 | 0.61 | 105 | 116 | |||
7/16 | 0.42 | 0.62 | 10.2 | 11.2 | |||
12 | 0.49 | 0.73 | 121 | 133 | |||
1/2 | 0.55 | 0.81 | 13.3 | 14.6 | |||
13 | 0.57 | 0.85 | 147 | 162 | |||
14 | 0.66 | 0.99 | 167 | 185 | |||
9/16 | 0.69 | 1.03 | 16.8 | 18.5 | |||
5/8 | 0.85 | 1.27 | 20.6 | 22.7 | |||
16 | 0.87 | 1.29 | 219 | 243 | |||
18 | 1.10 | 1.63 | 278 | 308 | |||
19 | 1.22 | 1.82 | 304 | 337 | |||
3/4 | 1.23 | 1.83 | 29.4 | 32.4 | |||
20 | 1.35 | 2.02 | 336 | 372 | |||
22 | 1.64 | 2.44 | 412 | 457 | |||
7/8 | 1.67 | 2.49 | 39.8 | 43.8 | |||
24 | 1.95 | 2.90 | 476 | 541 | |||
1 | 2.19 | 3.25 | 51.7 | 56.9 | |||
Note - 1. To convert to kilonewtons (kN), multiply tons by 8.896. 2. To convert to pound (Lbs), multiply tons by 2000. | |||||||
Compak 8

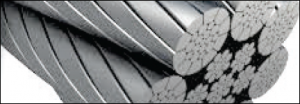

Compak 8×19 Class
8x19(S)+FC/IWRC | 8x21(F)+FC/IWRC | 8x25(F)+FC/IWRC | 8x26(WS)+FC/IWRC
Application:
Crane / Mining / Fishing
Features:
» High breaking force
» Reduced elongation results from increased steel content and the compact process
Diameter | FIBER CORE | STEEL CORE | ||||||||
Weight | MBS | Weight | MBS | |||||||
inch | mm | lb/ft | kg/m | 1770 (Tons) | 1960 (Tons) | lb/ft | kg/m | 1770 (Tons) | 1960 (Tons) | 2160 (Tons) |
14 | 0.53 | 0.79 | 15 | 16 | 0.58 | 0.87 | 17 | 19 | 21 | |
9/16 | 14.3 | 0.55 | 0.82 | 16 | 16 | 0.61 | 0.91 | 18 | 20 | 21 |
15 | 0.61 | 0.91 | 17 | 18 | 0.67 | 1.00 | 20 | 22 | 23 | |
5/8 | 16 | 0.69 | 1.03 | 20 | 21 | 0.77 | 1.14 | 23 | 25 | 27 |
11/16 | 17.5 | 0.83 | 1.23 | 23 | 25 | 0.91 | 1.36 | 27 | 30 | 32 |
18 | 0.88 | 1.31 | 25 | 26 | 0.97 | 1.44 | 29 | 32 | 34 | |
3/4 | 19 | 0.98 | 1.46 | 28 | 29 | 1.08 | 1.61 | 32 | 35 | 38 |
20 | 1.08 | 1.61 | 31 | 32 | 1.20 | 1.78 | 35 | 39 | 42 | |
7/8 | 22 | 1.31 | 1.95 | 37 | 39 | 1.45 | 2.16 | 43 | 47 | 50 |
15/16 | 24 | 1.56 | 2.32 | 44 | 46 | 1.73 | 2.57 | 51 | 56 | 60 |
1 | 25 | 1.69 | 2.52 | 48 | 50 | 1.87 | 2.78 | 56 | 61 | 65 |
26 | 1.83 | 2.72 | 52 | 54 | 2.02 | 3.01 | 60 | 66 | 71 | |
28 | 2.12 | 3.16 | 60 | 63 | 2.35 | 3.49 | 70 | 77 | 82 | |
1 1/8 | 28.6 | 2.22 | 3.30 | 63 | 66 | 2.45 | 3.64 | 73 | 80 | 85 |
1 3/16 | 30 | 2.44 | 3.63 | 69 | 72 | 2.69 | 4.01 | 80 | 88 | 94 |
1 1/4 | 32 | 2.78 | 4.13 | 79 | 82 | 3.06 | 4.56 | 91 | 100 | 107 |
34 | 3.13 | 4.66 | 89 | 93 | 3.46 | 5.15 | 103 | 113 | 121 | |
1 3/8 | 35 | 3.32 | 4.94 | 94 | 98 | 3.67 | 5.46 | 109 | 120 | 128 |
36 | 3.51 | 5.22 | 100 | 104 | 3.88 | 5.77 | 115 | 127 | 135 | |
38 | 3.91 | 5.82 | 111 | 116 | 4.32 | 6.43 | 128 | 141 | 151 | |
1 1/2 | 38.1 | 3.93 | 5.85 | 111 | 117 | 4.35 | 6.47 | 129 | 142 | 152 |
40 | 4.33 | 6.45 | 123 | 129 | 4.79 | 7.13 | 142 | 157 | 167 | |
1 5/8 | 42 | 4.78 | 7.11 | 135 | 5.28 | 7.86 | 157 | 173 | ||
1 3/4 | 44 | 5.24 | 7.80 | 149 | 5.80 | 8.63 | 172 | 189 | ||
45 | 5.48 | 8.16 | 155 | 6.20 | 9.22 | 180 | 198 | |||
46 | 5.73 | 8.53 | 162 | 6.40 | 9.52 | 188 | 207 | |||
1 7/8 | 48 | 6.24 | 9.29 | 177 | 6.97 | 10.37 | 205 | 225 | ||
Note - To convert to pound (Lbs), multiply tons by 2000. |
Compak 8×37 Class
8x31(WS)+FC/IWRC | 8x36(WS)+FC/IWRC | 8x41(WS)+FC/IWRC
Applications:
Crane / Mining / Fishing
Features:
» High breaking force
» Reduced elongation results from increased steel content and the compact process
Diameter | FIBER CORE | STEEL CORE | ||||||||
Weight | MBS | Weight | MBS | |||||||
inch | mm | lb/ft | kg/m | 1770 (Tons) | 1960 (Tons) | lb/ft | kg/m | 1770 (Tons) | 1960 (Tons) | 2160 (Tons) |
14 | 0.54 | 0.81 | 15 | 16 | 0.59 | 0.88 | 18 | 19 | 21 | |
9/16 | 14.3 | 0.56 | 0.84 | 16 | 17 | 0.62 | 0.92 | 18 | 20 | 22 |
15 | 0.62 | 0.92 | 17 | 18 | 0.68 | 1.01 | 20 | 22 | 24 | |
5/8 | 16 | 0.71 | 1.05 | 20 | 21 | 0.77 | 1.15 | 23 | 25 | 27 |
11/16 | 17.5 | 0.85 | 1.26 | 24 | 25 | 0.93 | 1.38 | 27 | 30 | 32 |
18 | 0.89 | 1.33 | 25 | 26 | 0.98 | 1.46 | 29 | 32 | 34 | |
3/4 | 19 | 0.99 | 1.48 | 28 | 29 | 1.09 | 1.62 | 32 | 36 | 38 |
20 | 1.10 | 1.64 | 31 | 32 | 1.21 | 1.80 | 36 | 40 | 42 | |
7/8 | 22 | 1.34 | 1.99 | 38 | 39 | 1.46 | 2.18 | 43 | 48 | 51 |
15/16 | 24 | 1.59 | 2.37 | 45 | 47 | 1.74 | 2.59 | 52 | 57 | 61 |
1 | 25 | 1.73 | 2.57 | 49 | 50 | 1.89 | 2.81 | 56 | 62 | 66 |
26 | 1.87 | 2.78 | 52 | 55 | 2.04 | 3.04 | 61 | 67 | 71 | |
28 | 2.16 | 3.22 | 61 | 63 | 2.37 | 3.53 | 70 | 77 | 83 | |
1 1/8 | 28.6 | 2.26 | 3.36 | 63 | 66 | 2.47 | 3.68 | 73 | 81 | 86 |
1 3/16 | 30 | 2.49 | 3.70 | 70 | 73 | 2.72 | 4.05 | 81 | 89 | 95 |
1 1/4 | 32 | 2.83 | 4.21 | 79 | 83 | 3.10 | 4.61 | 92 | 101 | 108 |
34 | 3.19 | 4.75 | 90 | 93 | 3.49 | 5.20 | 104 | 114 | 122 | |
1 3/8 | 35 | 3.38 | 5.03 | 95 | 99 | 3.70 | 5.51 | 110 | 121 | 129 |
36 | 3.57 | 5.32 | 101 | 105 | 3.92 | 5.83 | 116 | 128 | 137 | |
38 | 3.98 | 5.93 | 112 | 117 | 4.37 | 6.50 | 130 | 143 | 152 | |
1 1/2 | 38.1 | 4.00 | 5.96 | 113 | 117 | 4.39 | 6.53 | 130 | 144 | 153 |
40 | 4.41 | 6.57 | 124 | 129 | 4.84 | 7.20 | 144 | 158 | 169 | |
1 5/8 | 42 | 4.87 | 7.25 | 137 | 5.34 | 7.94 | 158 | 174 | ||
1 3/4 | 44 | 5.34 | 7.95 | 150 | 5.85 | 8.71 | 174 | 191 | ||
45 | 5.59 | 8.32 | 157 | 6.12 | 9.11 | 182 | 200 | |||
46 | 5.84 | 8.69 | 164 | 6.46 | 9.62 | 190 | 209 | |||
1 7/8 | 48 | 6.36 | 9.46 | 179 | 7.04 | 10.47 | 207 | 228 | ||
Note - To convert to pound (Lbs), multiply tons by 2000. |
Compak 6
Compak 6x19 Class
6x19(S)+IWRC | 6x25(F)+IWRC | 6x26(WS)+IWRC
Applications:
» Crane / Mining
Features:
» Superior bending fatigue life when compared with conventional six strand ropes
» Reduced elongation results from increased steel content and the compact process
DIAMETER | WEIGHT | MINIMUM BREAKING STRENGTH | |||||
INCH | MM | LB/FT | KG/M | EIP(TONS) | 1960(KN) | EEIP(TONS) | 2160(KN) |
3/8 | 0.28 | 0.42 | 8.3 | 9.13 | |||
10 | 0.31 | 0.46 | 85.3 | 91.5 | |||
11 | 0.38 | 0.56 | 98.1 | 113 | |||
7/16 | 0.38 | 0.57 | 11.2 | 12.3 | |||
12 | 0.45 | 0.67 | 114 | 127 | |||
1/2 | 0.50 | 0.75 | 14.6 | 16.1 | |||
13 | 0.53 | 0.78 | 147 | 157 | |||
14 | 0.61 | 0.91 | 169 | 183 | |||
9/16 | 0.63 | 0.94 | 18.5 | 20.4 | |||
5/8 | 0.78 | 1.16 | 22.7 | 25 | |||
16 | 0.80 | 1.18 | 217 | 228 | |||
18 | 1.01 | 1.50 | 275 | 298 | |||
19 | 1.12 | 1.67 | 302 | 323 | |||
3/4 | 1.13 | 1.68 | 32.4 | 35.6 | |||
20 | 1.24 | 1.85 | 333 | 355 | |||
22 | 1.50 | 2.24 | 398 | 423 | |||
7/8 | 1.53 | 2.28 | 43.8 | 48.2 | |||
24 | 1.79 | 2.66 | 487 | 518 | |||
1 | 2.00 | 2.98 | 56.9 | 62.6 | |||
26 | 2.10 | 3.12 | 576 | 610 | |||
28 | 2.43 | 3.62 | 655 | 700 | |||
1 1/8 | 2.54 | 3.77 | 71.5 | 78.7 | |||
1 1/4 | 3.13 | 4.66 | 87.9 | 96.7 | |||
32 | 3.18 | 4.73 | 844 | 914 | |||
1 3/8 | 3.79 | 5.64 | 106 | 117 | |||
36 | 4.02 | 5.99 | 1060 | 1120 | |||
1 1/2 | 4.51 | 6.71 | 125 | 138 | |||
40 | 4.97 | 7.39 | 1290 | 1320 | |||
1 5/8 | 5.29 | 7.87 | 146 | 161 | |||
44 | 6.01 | 8.94 | 1500 | 1590 | |||
1 3/4 | 6.13 | 9.13 | 169 | 186 | |||
1 7/8 | 7.04 | 10.48 | 192 | 211 | |||
48 | 7.15 | 10.64 | 1880 | 1890 | |||
2 | 8.01 | 11.92 | 217 | 239 | |||
52 | 8.40 | 12.49 | 2130 | 2220 | |||
2 1/8 | 9.05 | 13.46 | 243 | 267 | |||
56 | 9.74 | 14.49 | 2470 | 2574 | |||
2 1/4 | 10.14 | 15.09 | 272 | 299 |
Note: 1. To convert to kilonewtons (kN), multiply tons by 8.896.
2. To convert to pound (Lbs), multiply tons by 2000.
Compak 6x37 Class
6x31(WS)+IWRC | 6x36(WS)+IWRC | 6X41(WS)+IWRC
Applications:
» Crane / Mining
Features:
» Superior bending fatigue life when compared with conventional six strand ropes
» Reduced elongation results from increased steel content and the compact process
DIAMETER | WEIGHT | MINIMUM BREAKING STRENGTH | |||||
INCH | MM | LB/FT | KG/M | EIP(TONS) | 1960(KN) | EEIP(TONS) | 2160(KN) |
3/8 | 0.28 | 0.42 | 8.3 | 9.13 | |||
10 | 0.31 | 0.46 | 85.3 | 91.5 | |||
11 | 0.38 | 0.56 | 98.1 | 113 | |||
7/16 | 0.38 | 0.57 | 11.2 | 12.3 | |||
12 | 0.45 | 0.67 | 114 | 127 | |||
1/2 | 0.50 | 0.75 | 14.6 | 16.1 | |||
13 | 0.53 | 0.78 | 147 | 157 | |||
14 | 0.61 | 0.91 | 169 | 183 | |||
9/16 | 0.63 | 0.94 | 18.5 | 20.4 | |||
5/8 | 0.78 | 1.16 | 22.7 | 25 | |||
16 | 0.80 | 1.18 | 217 | 228 | |||
18 | 1.01 | 1.50 | 275 | 298 | |||
19 | 1.12 | 1.67 | 302 | 323 | |||
3/4 | 1.13 | 1.68 | 32.4 | 35.6 | |||
20 | 1.24 | 1.85 | 333 | 355 | |||
22 | 1.50 | 2.24 | 398 | 423 | |||
7/8 | 1.53 | 2.28 | 43.8 | 48.2 | |||
24 | 1.79 | 2.66 | 487 | 518 | |||
1 | 2.00 | 2.98 | 56.9 | 62.6 | |||
26 | 2.10 | 3.12 | 576 | 610 | |||
28 | 2.43 | 3.62 | 655 | 700 | |||
1 1/8 | 2.54 | 3.77 | 71.5 | 78.7 | |||
1 1/4 | 3.13 | 4.66 | 87.9 | 96.7 | |||
32 | 3.18 | 4.73 | 844 | 914 | |||
1 3/8 | 3.79 | 5.64 | 106 | 117 | |||
36 | 4.02 | 5.99 | 1060 | 1120 | |||
1 1/2 | 4.51 | 6.71 | 125 | 138 | |||
40 | 4.97 | 7.39 | 1290 | 1320 | |||
1 5/8 | 5.29 | 7.87 | 146 | 161 | |||
44 | 6.01 | 8.94 | 1500 | 1590 | |||
1 3/4 | 6.13 | 9.13 | 169 | 186 | |||
1 7/8 | 7.04 | 10.48 | 192 | 211 | |||
48 | 7.15 | 10.64 | 1880 | 1890 | |||
2 | 8.01 | 11.92 | 217 | 239 | |||
52 | 8.40 | 12.49 | 2130 | 2220 | |||
2 1/8 | 9.05 | 13.46 | 243 | 267 | |||
56 | 9.74 | 14.49 | 2470 | 2574 | |||
2 1/4 | 10.14 | 15.09 | 272 | 299 |
Note: 1. To convert to kilonewtons (kN), multiply tons by 8.896.
2. To convert to pound (Lbs), multiply tons by 2000.
